	Switchbox 4 Channel, BLE Control and Display (12V, 10 Watt version)		Function

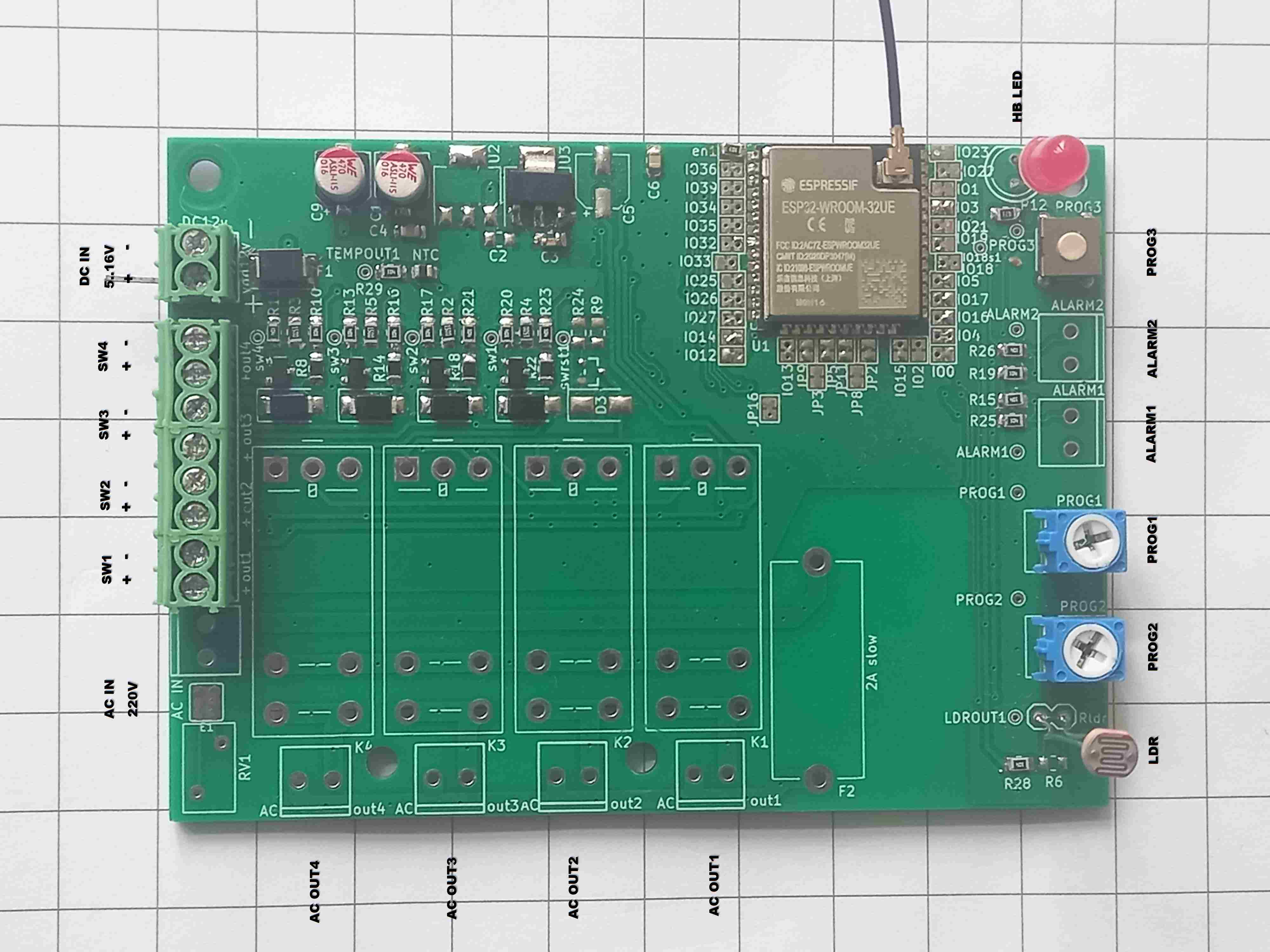

			SwitchBox with Bluetooth Low Energy (BLE) Control and Display. The SwitchBox operates in Sleep Mode. The BLE functionality is switched OFF by default. The BLE is switched ON by pressing the “PROG3” button, the BLE Interface enables Programming the SwitchBox. The board switches one of the 4 Switch Outputs (SW1 to SW4), Maximal ONE Switch Output is Active at any given Time. The Timing and Control of the Switches is programmed in the (Android) SwitchBox Application.

	Typical Application		Description

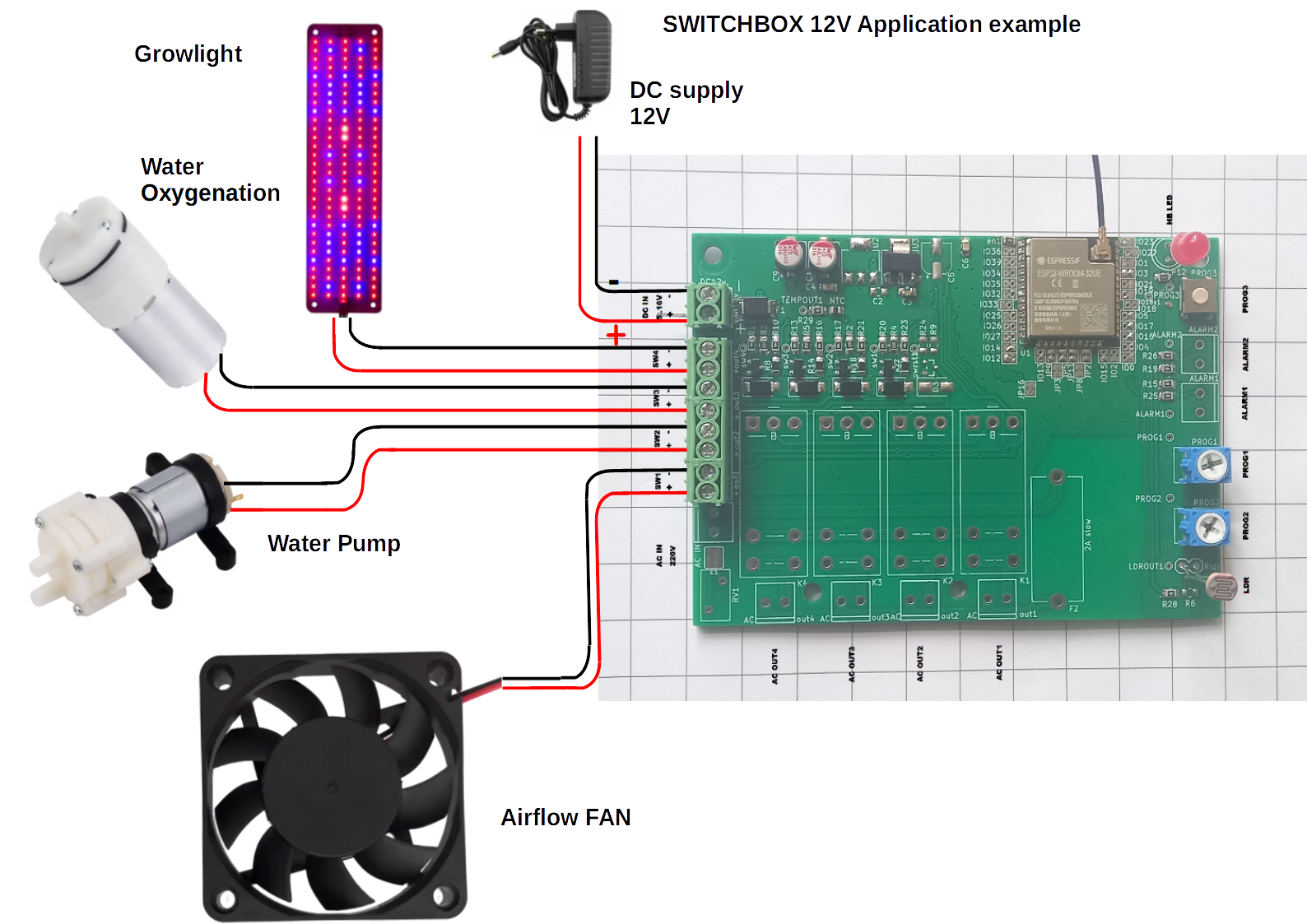

			The SwitchBox is optimized for gardening applications such as a Green Wall. It can control a Water Pump, Water Oxygenator, Ventilator. Unconnected Switch Outputs are Disabled Automatically. The Software checks for Short Circuited Load at the Moment a Load is to be switched ON. A Light Sensor (LDR) is integrated to Disable Operation at Night. A Temperature Sensor (NTC) is integrated to Prevent Overheating of the SwitchBox Circuit Board. The board requires DC supply of at least 5V to 16V maximum. The Current consumption is less than 1mA in Sleep Mode without Load. The Maximum Load Current is 1A. Caution: Only Add or Remove a Load in the Application when the DC supply is OFF.

Price: 38 Euro (excl. V.A.T.)

In order to buy, please contact

Email: m.nijrolder@gmail.com Use "SwitchBox_12V_P10W" in the subject line.

Component shapes, Board Components and values may vary or change and not resemble the pictures. The values on this page are an indication, accuracy of the circuit is optimized, but limited. NO guarantees can be derived from this Information.
